Update Factory is a domain independent platform for rolling out
software updates to constrained edge devices.
IoT Platform - Update Factory
Update Factory supports easy and flexible rollout management
for updating a large amount of devices based on different
Update Factory is our artifact content and software update delivery IoT Platform, powered by Eclipse hawkBit, ready to serve your device ecosystem.
Update Factory condenses our solid knowledge of server-side applications, DevOps and expertise with different embedded operating systems customized over the past decade.
Because of our skills and experience with the complete tier of IoT architectures, from embedded devices to web applications and DevOps, we implemented a complete, consistent and scalable pipeline to ensure a solid and robust device management system.
Software updates and general device management are part of the same process.
In many situations we need to know device specific information in advance before provisioning any type of software update.
Update Factory includes functionality for triggering groups of devices to perform an update, accompanied by an image repository and basic reporting and monitoring capabilities. In particular, uploading an artifact to the repository, assigning it to eligible devices, managing the roll out campaign for a large number of devices, monitoring and reporting the progress of the roll-out and requirements regarding security and reliability are essential features of the process and the IoT Platform.
Today there are existing platforms for managing software updates and roll-out campaigns, however all of these platforms are mostly designed for Microcontrollers deployed in large scale or for the development platform like the RPi.
Update Factory is instead a neutral platform to deliver software updates specifically to products featuring application processors running Android or Linux. UF addresses medium volume needs but in a way which is familiar to embedded engineers: it can be implemented in any embedded device with minimum effort. Kynetics provides a meta-yocto layer to support Update Factory and an agent for Android. If you are not running Yocto, we can provide you any common package for your OS for free.

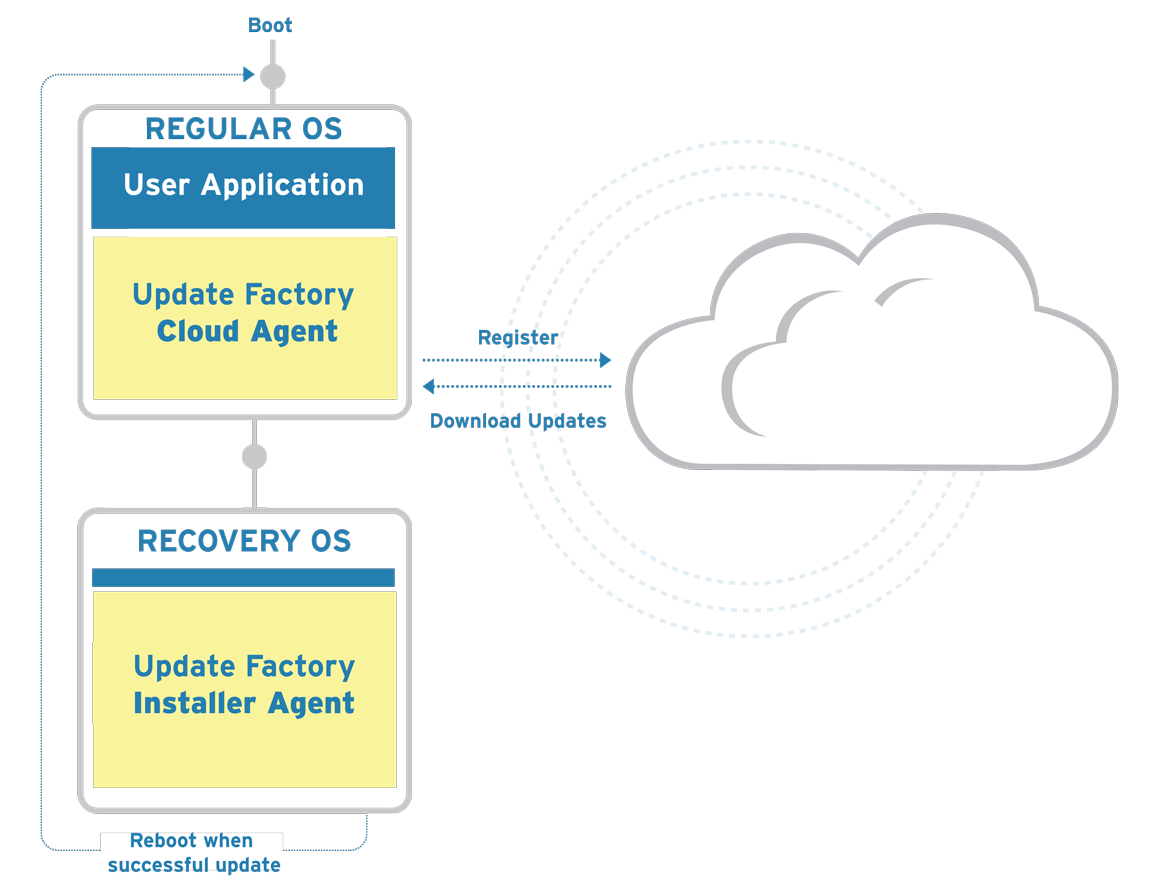

Because UF implements a single image update (which saves storage on the device), it is a necessity to have an additional partition: recovery. This is a pretty established schema, inherited from Android and finally available also to Linux devices.
Once the device downloads an update file from the cloud, the user can simply reboot the device (or the reboot can be automatic), and while running a recovery OS the new image is written.
UF is power-cycle solid because the recovery image is read-only and always available if the update is not successful for any reason.
Remotely Update Devices at Scale
Update Factory supports remote device updates for Linux and Android.
- Upload, name and track updates, their versioning, other meta descriptions and custom data
- Update a single device and small or large groups of devices
- Deploy updates immediately or upon a schedule
- Split updates into groups of devices and set thresholds (%) to either halt or continue, (minimize risk)
- Monitor update progress and device statuses
With a tightly built update procedure, devices can sustain abrupt power failures with a success-or-fail approach.
- Updates can be packaged as single files, apps or full OSes
- Efficient with storage – only one copy of the update is needed
- Updates are signed
- Hashes are used to ensure tamper proofing and authenticity
- Optionally update devices with local USB removable media
- Small footprint (8MB), can be used as a rescue/fallback image
